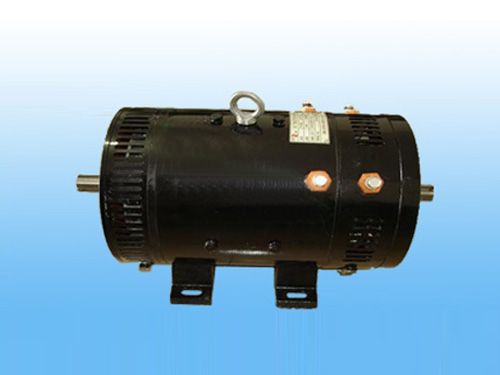

注: ZC代表串勵電機,ZT代表他勵電機。該電機為六齒外花鍵出軸,可以單出軸,也可以雙出軸,按客戶的要求定做。適用于車速在70km/h以上的電動轎車等。?
型號 | 額定功率 | 額定電壓 | 額定電流 | 額定轉速 | 額定扭矩 |
ZC/T5B-72C1 | 5 | 72 | 87 | 2800 | 17 |
ZC/T5B-72C2 | 5 | 72 | 87 | 2500 | 19 |
ZC/T5B-72C3 | 5 | 72 | 87 | 2000 | 23.8 |
ZC/T5B-72C5 | 5 | 72 | 87 | 3200 | 14.9 |
ZC/T5B-96C1 | 5 | 96 | 65 | 2800 | 17 |
ZC/T6.3B-72C1 | 6.3 | 72 | 109 | 3200 | 18.8 |
ZC/T6.3B-72C2 | 6.3 | 72 | 109 | 2800 | 21.5 |
ZC/T6.3B-72C3 | 6.3 | 72 | 109 | 2500 | 24 |
ZC/T6.3B-72C4 | 6.3 | 72 | 109 | 2000 | 30 |
ZC/T6.3B-96C1 | 6.3 | 96 | 82 | 2800 | 21.5 |
ZC/T6.3B-108C1 | 6.3 | 108 | 73 | 2800 | 21.5 |
ZC/T7.5B-72C1 | 7.5 | 72 | 130 | 2800 | 25.6 |
ZC/T7.5B-72C2 | 7.5 | 72 | 130 | 2200 | 32.6 |
ZC/T7.5B-96C1 | 7.5 | 96 | 97 | 2800 | 25.6 |
ZC/T7.5B-96C2 | 7.5 | 96 | 97 | 2500 | 28.6 |
ZC/T7.5B-96C2 | 7.5 | 96 | 97 | 2000 | 35.8 |
ZC/T8.5B-72C1 | 8.5 | 72 | 147 | 2500 | 32.4 |
ZC/T8.5B-72C2 | 8.5 | 72 | 147 | 2000 | 40.6 |
ZC/T8.5B-96C1 | 8.5 | 96 | 110 | 2800 | 29 |
ZC/T8.5B-96C2 | 8.5 | 96 | 110 | 2500 | 32.5 |
ZC/T10B-96C1 | 10 | 96 | 130 | 2800 | 34.1 |
ZC/T10B-120C1 | 10 | 120 | 104 | 2800 | 34.1 |
ZC/T10B-144C1 | 10 | 144 | 87 | 3000 | 31.8 |
ZC/T11B-144C1 | 11 | 144 | 95 | 3000 | 35 |
